In the world of industrial automation, Programmable Logic Controllers (PLCs) play a crucial role in controlling and monitoring various processes. These versatile devices are responsible for gathering data from sensors, making decisions based on predefined logic, and controlling actuators to achieve desired outcomes. However, to effectively perform these tasks, PLCs need to communicate with other devices and systems. This is where communication protocols come into play.

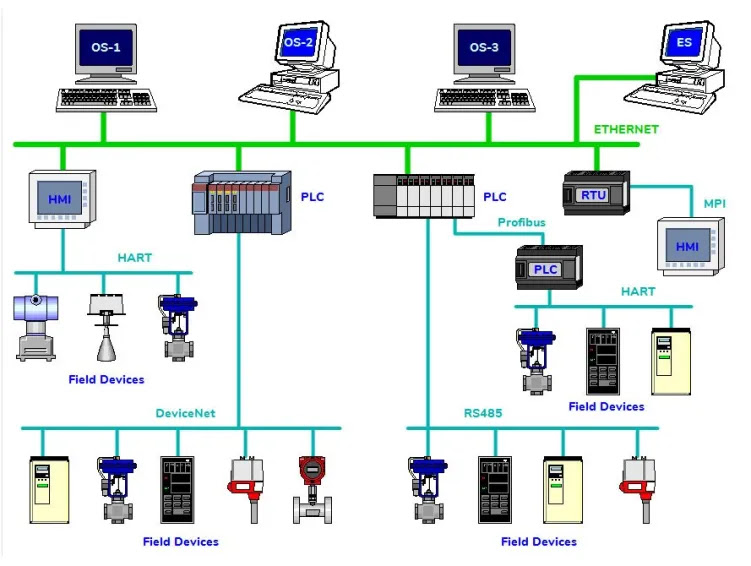

PLC communication protocols are a set of rules and standards that govern the exchange of data between PLCs and other devices, such as human-machine interfaces (HMIs), remote input/output (I/O) modules, supervisory control and data acquisition (SCADA) systems, and other PLCs. These protocols ensure reliable and efficient data transmission, allowing for seamless integration and interoperability in industrial automation environments.
Let's take a closer look at some of the most common PLC communication protocols used in industrial settings:
- Modbus: Modbus is a widely adopted serial communication protocol that enables communication between PLCs and devices such as HMIs, remote I/O modules, and other controllers. It uses a master-slave architecture, where a master device initiates and controls the communication, and one or more slave devices respond to the master's requests. Modbus supports both ASCII and RTU (binary) modes and can be implemented over various physical media, including RS-232, RS-485, and Ethernet.
- Profibus: Profibus (Process Field Bus) is a popular fieldbus communication protocol widely used in process automation and manufacturing industries. It supports both communication between PLCs and field devices (Profibus DP) and communication between PLCs (Profibus FMS). Profibus offers high-speed data transfer, robustness against noise, and supports various data transmission modes, such as cyclic, acyclic, and time-triggered communication.
- EtherNet/IP: EtherNet/IP is an industrial Ethernet protocol commonly used for communication between PLCs, HMIs, and other devices. It leverages standard Ethernet infrastructure, allowing for high-speed and reliable data transfer. EtherNet/IP supports both cyclic and acyclic communication and is based on the Common Industrial Protocol (CIP), which enables seamless integration with other CIP-based networks.
- DeviceNet: DeviceNet is another popular fieldbus protocol that facilitates communication between industrial devices. It operates on a multi-drop network topology, where multiple devices are connected in a daisy-chain fashion. DeviceNet supports both cyclic and acyclic messaging and provides plug-and-play functionality for easy device integration. It is widely used in applications such as motor control, sensors, and actuators.
- Profinet: Profinet is an Ethernet-based industrial communication protocol developed by the Profibus and Profinet International (PI) organization. It offers high-speed data transfer, real-time communication capabilities, and seamless integration with IT systems. Profinet supports both cyclic and acyclic communication and provides flexible network topologies, including line, ring, and star configurations.
- OPC (OLE for Process Control): OPC is not a communication protocol itself but rather a set of standards that enable interoperability between different automation devices and software applications. OPC servers act as a bridge between the PLCs and client applications, allowing for data exchange. OPC has various specifications, such as OPC DA (Data Access), OPC HDA (Historical Data Access), and OPC UA (Unified Architecture), which provide different functionalities and capabilities.
These are just a few examples of the many PLC communication protocols available in the industrial automation landscape. The choice of protocol depends on several factors, including the specific application requirements, network infrastructure, and existing system components.
In recent years, there has been an increasing trend toward using Ethernet-based protocols due to their speed, flexibility, and compatibility with IT systems. Ethernet-based protocols like EtherNet/IP and Profinet have gained popularity, offering advantages such as high-speed data transfer, real-time communication, and seamless integration with existing Ethernet networks.
Additionally, with the rise of the Industrial Internet of Things (IIoT) and Industry 4.0, there is a growing need for protocols that support secure and scalable communication between PLCs and cloud-based systems. OPC UA, the latest version of OPC, is designed to meet these requirements. It provides a platform-independent and secure communication framework, enabling data exchange between devices, machines, and enterprise systems.
Furthermore, wireless communication protocols have also emerged as viable options in certain industrial applications. Protocols like WirelessHART and ISA100.11a are specifically designed for wireless sensor networks, offering flexibility, mobility, and cost-effective deployment in environments where wired connections are challenging or impractical.
It's worth noting that many PLCs support multiple communication protocols, allowing for greater flexibility and compatibility with different devices and systems. For example, some PLCs have built-in communication modules that support multiple protocols, enabling seamless integration into various industrial networks.
In conclusion, PLC communication protocols are essential for enabling efficient and reliable data exchange in industrial automation environments. The choice of protocol depends on factors such as the specific application requirements, network infrastructure, and compatibility with existing devices and systems. As technology advances, we can expect further developments in PLC communication protocols to meet the evolving needs of the industry, including enhanced security, interoperability, and support for emerging technologies like IIoT and wireless communication.
